Package Design for  ASU Watch





Screen Shot 2018-02-12 at 20.47.06.png

ASU Watch

In 2017 summer, I was helping the product design department of ASU technology to develop the package for their new smart projective watch which they just released on Janurary.







Inspiration

The inspiration of the package  design comes from this tricotime watch which creates an three-dimensional visual illumuniation.








Targeted Customer

Based on the retail price and the overall style of the watch,  the targeted customer will be mainly male who has a solid financial condition and has his own attitude of beauty.




Material Selection Based on Targeted User



Velvet

Leather






External Structure Design

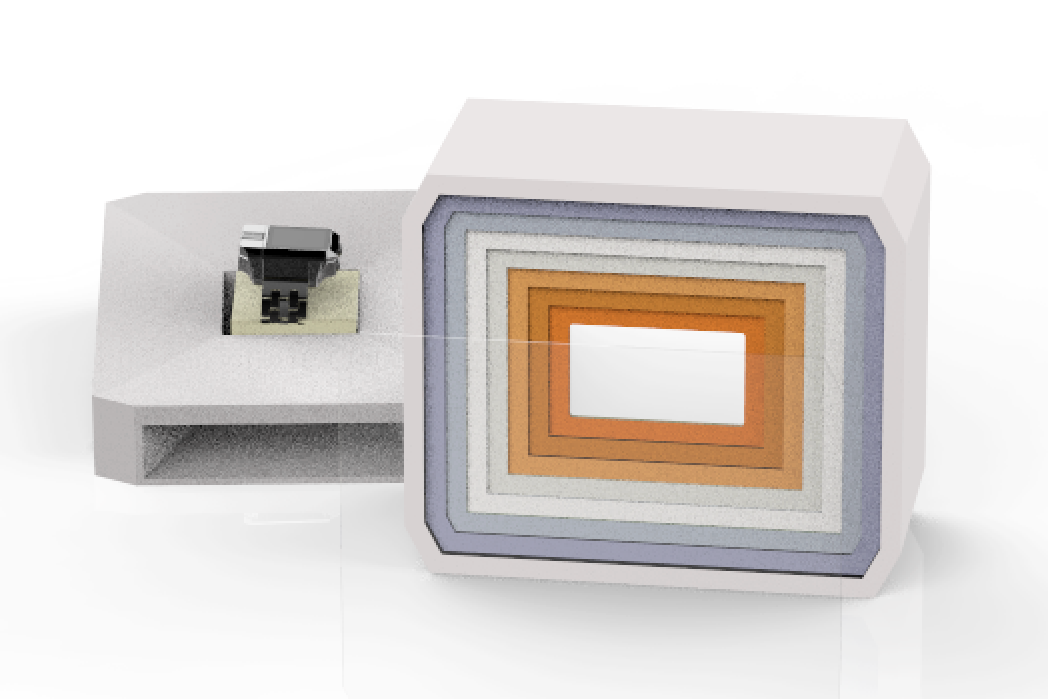

To make the package visually more three dimensional, the top part of the package was made of multiple layers of material in transitioning colors.






Internal Structure Design

After determining the external structure of the package, the internal layout was identified by mock up.








Prototyping

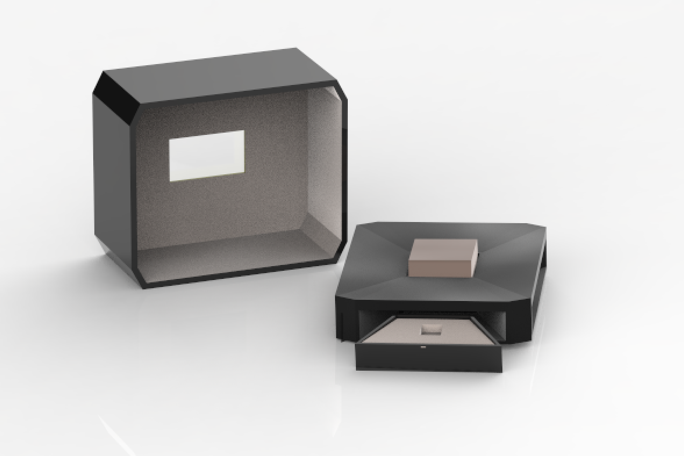

Modeled in CAD and rendered within selected material.





屏幕快照 2017-07-28 下午5.56.55.png
屏幕快照 2017-07-28 下午5.40.12.png
屏幕快照 2017-07-28 下午3.19.56.png

Bring some colors
