Cat Toy

                                                                                           Individual Project

                                                                                      My Role: Design, Build





 Qiuqiu

My cousin's cat who I looked after during  the break.



WE  ALL  LOVE   HER  !

WE  WANT  HER BE  HAPPY  EVEN  SECONDS!



Her typical Day





However

Her Happiness is threatened by these factors







屏幕快照 2017-09-14 下午4.20.43.png



My inspiration



Automata


Interior Design


User's behavior



The Procedure




Design  the Mechanism

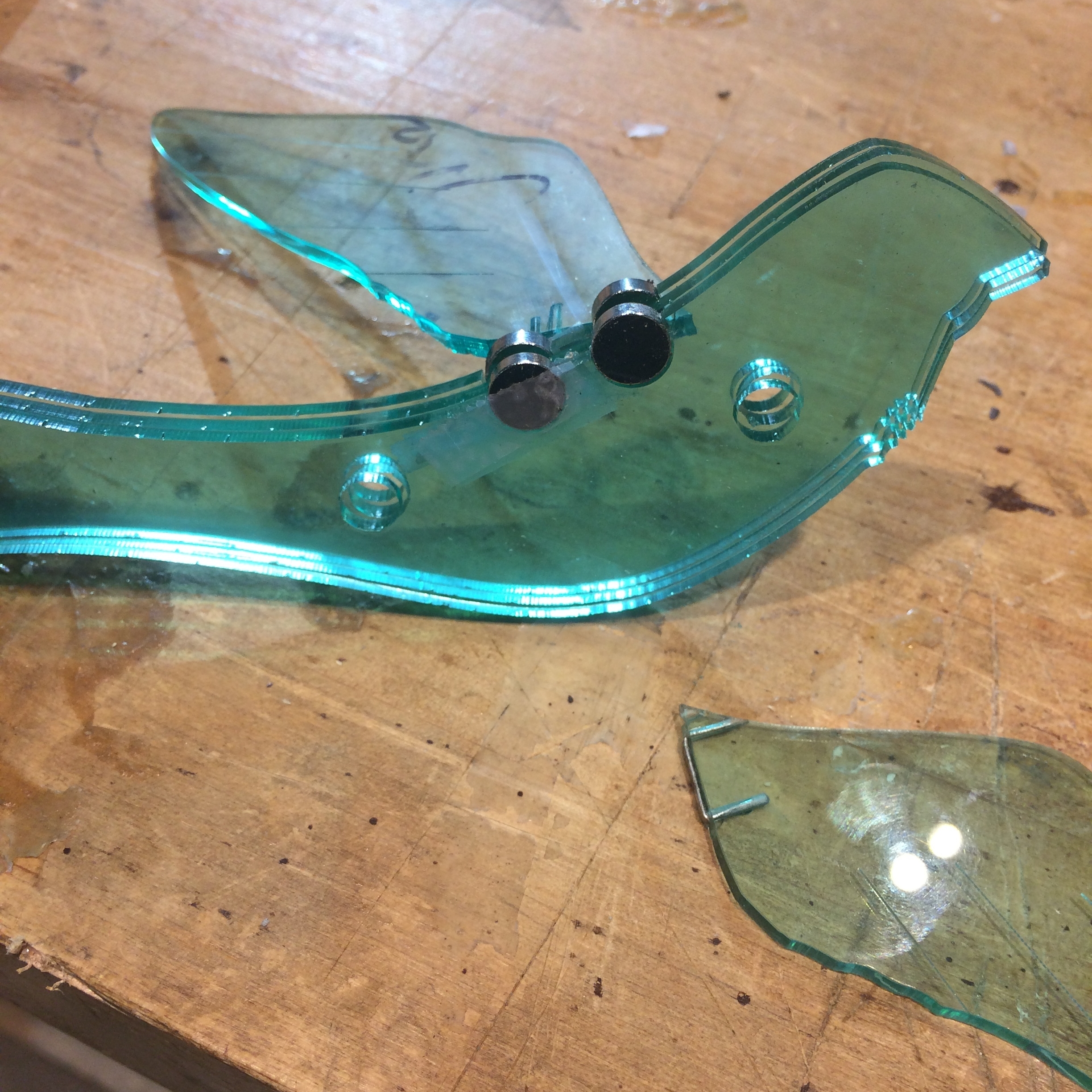

Inspired from the automata,  I took advantage of magnets and multiple gears to enable bird's wing can lift up and down.



FullSizeRender 2.jpg






Build the Mechanism



After drawing parts in Illustrator, parts were manufactured by laser cutting.

To ensure the accuracy, all parts had been cut of cardboard.

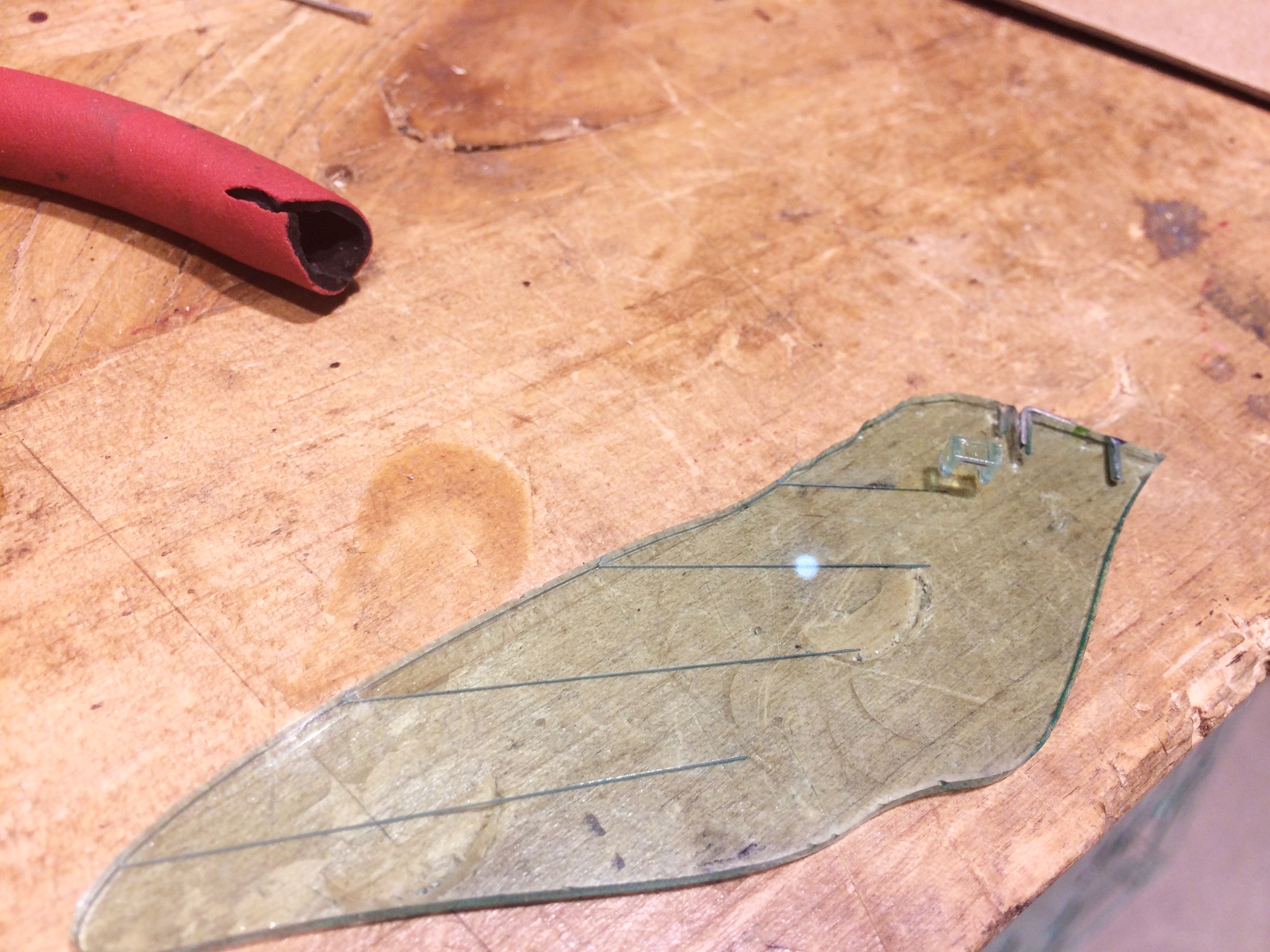

After several iteration of cuting on cardboard and functional test, parts were cut on acrylic finally.







Assembly & Decoration

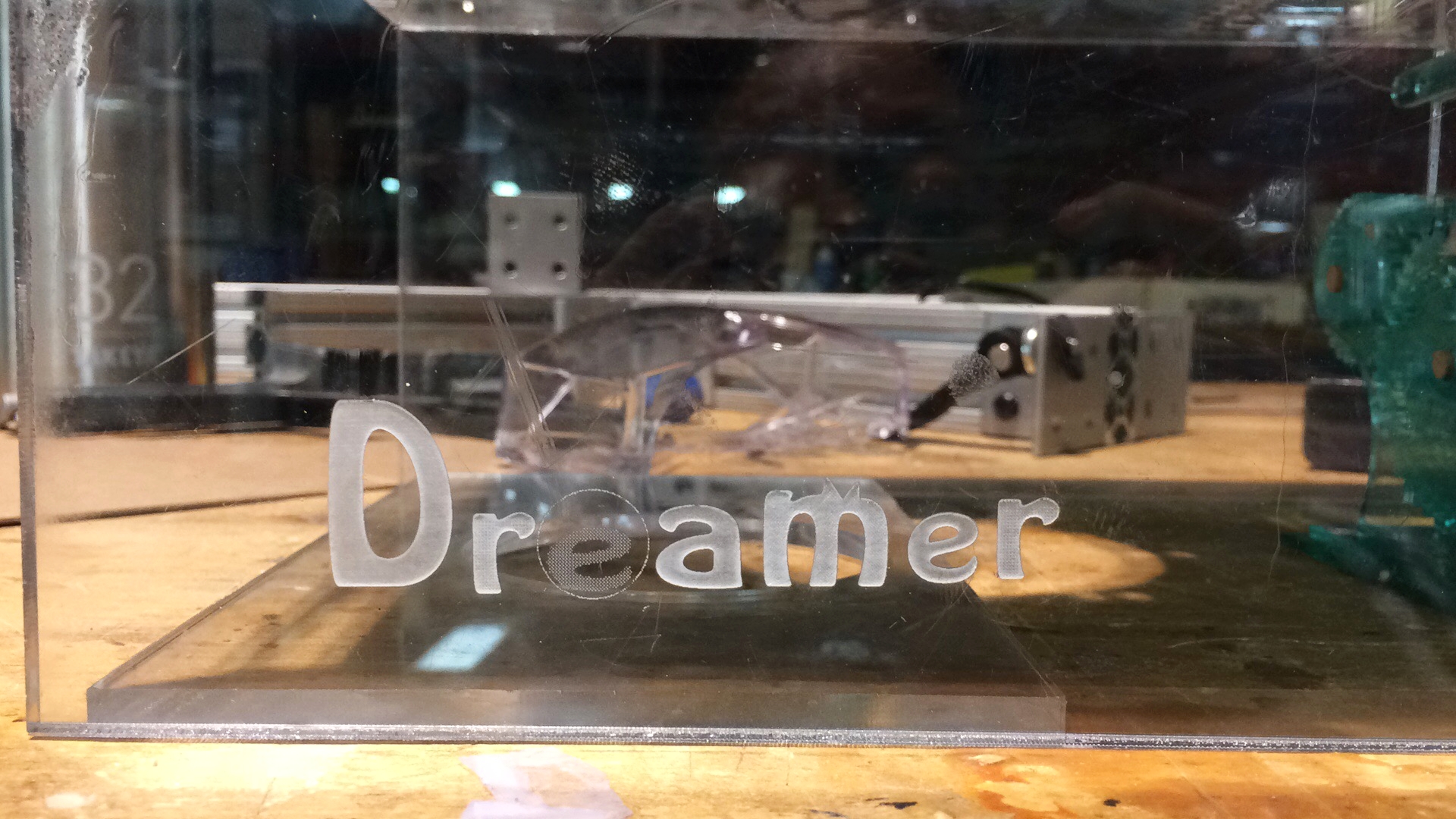

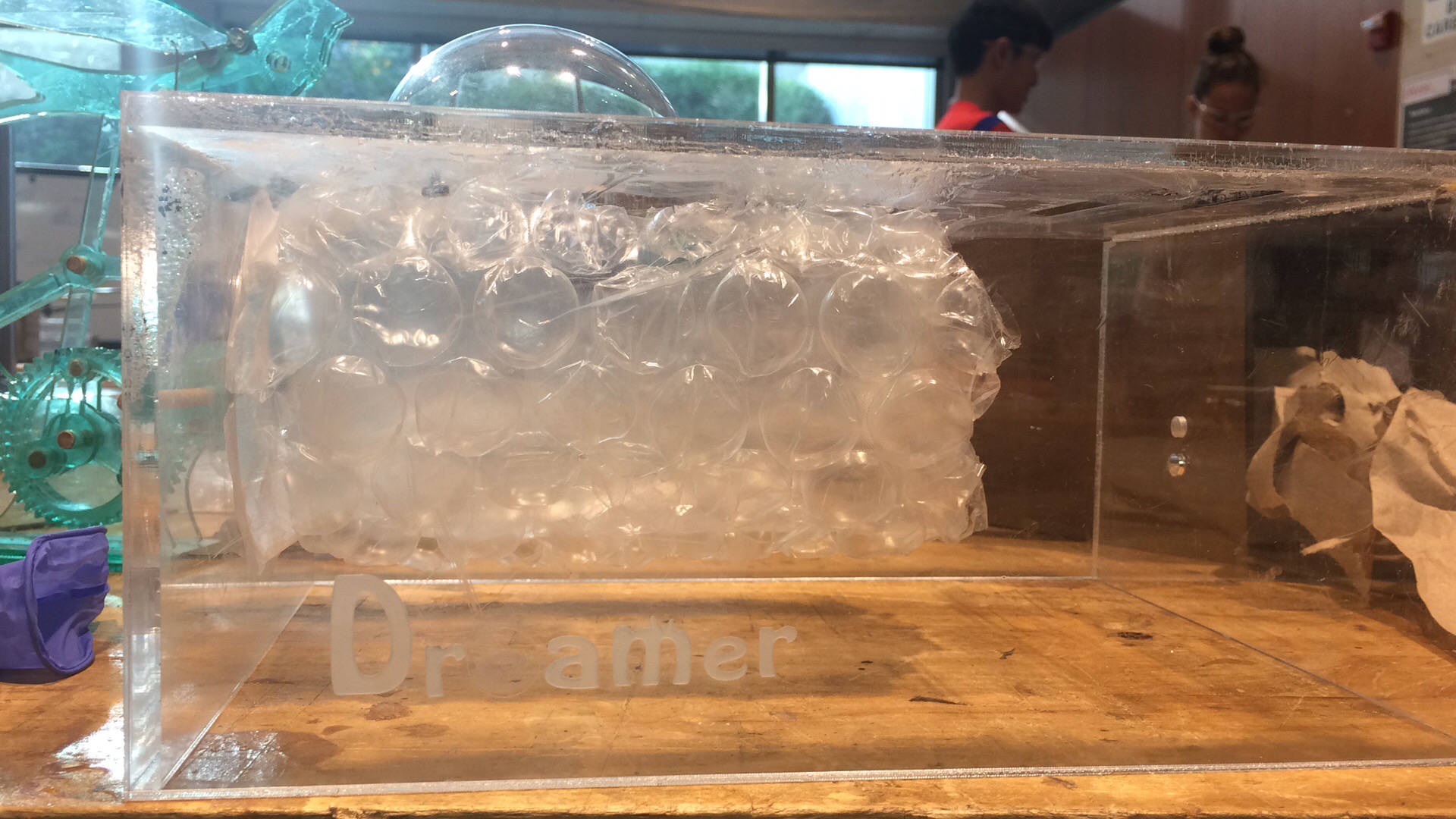

Assembled the bubble sheet tunnel with other parts and  cut the logo on the toy.

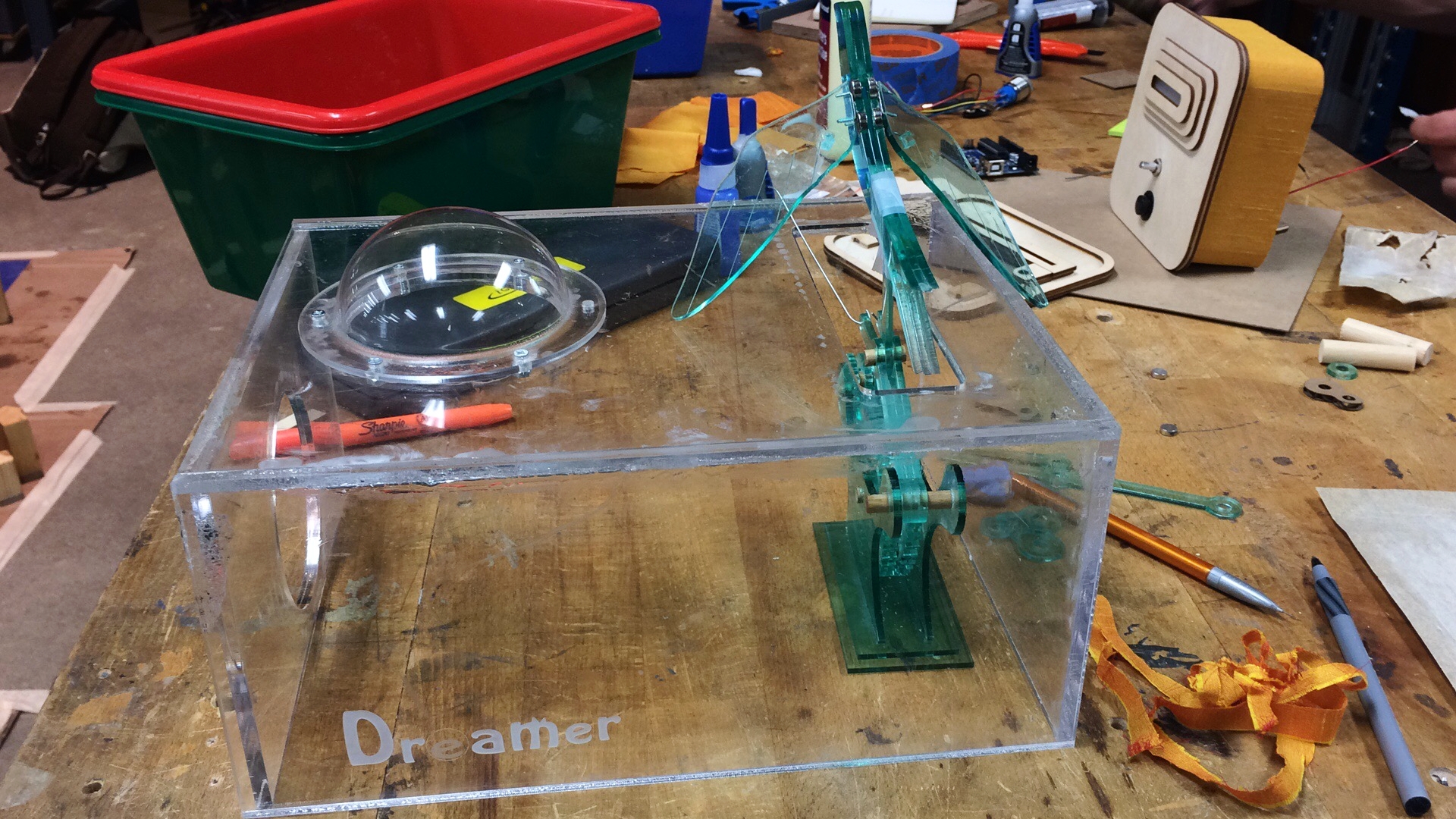

Final Prototype
