AirPlane Wheelchair design

Team Project

My Role  : Idea Generation, Sketching, (Partial) CAD model Building, Prototype Manufacturing, Business Analysis



NO flIGHT.png

"I rarely take flights over 6 hours include the check in time.





Otherwise,I have to carry the catheter bag."

                               - User's Quote



customer's Main Concerns




Based on FAA regulations

footrest, armrest,restrain,

backrest, handle

and wheel locks

          Cushion

Maximize width

Integrated with existing seat

 Less time needed for transfering

Accessibility to Lavatory




Design and Build

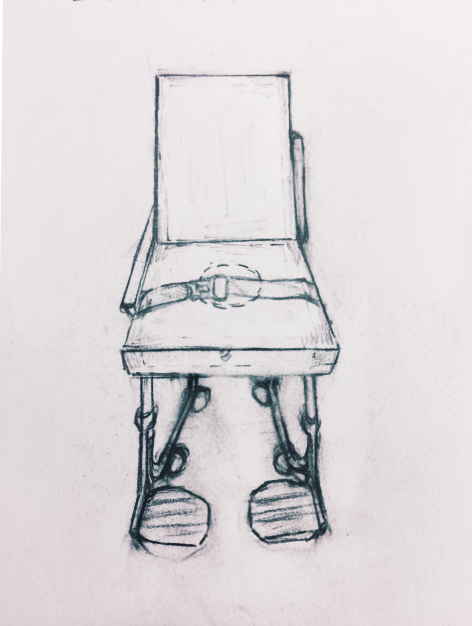

Screen Shot 2018-03-03 at 16.25.05.png

C-Shape Structure

To enable the wheelchair to be integrated on the current airplane seat skeleton and move freely in narrow aisle, the wheelchair with a C-shape structure has been generated .

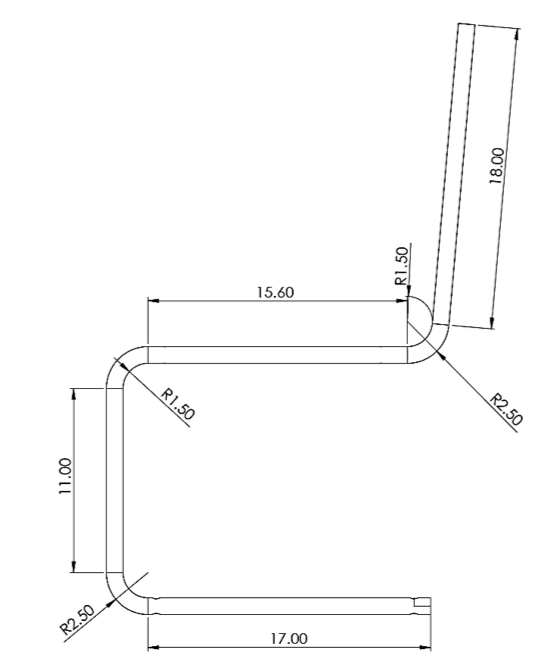

The dimension of the C-shape structure which was manufactured by aluminum tubes.



chair model.png

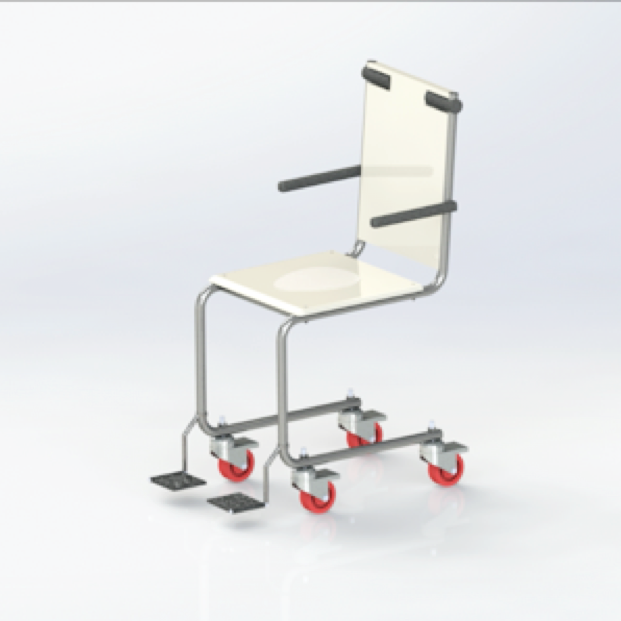

CAD Model Building

After finalizing the design strategy, the CAD model has been built and rendered in Solid Works.




Animation Demonstration




The dimension of the seat in the video is based on  the actual  airplane seat dimension in real world.





Manufacturing

By applying different manufacturing method and constantly revising the manufacturing plan for small tolerance, we finally built a functional real-size wheelchair by 3D printing, Laser cutting and Mechanical Manufacturing method.




Final Demonstration




Screen Shot 2018-03-03 at 16.26.25.png

What I learnt

Always considering the tolerance before manufacturing

Getting feedback from various sources

Always making sure every team member is on the same page which is extremely important for large team




Side Project

Individual

My Role: Design, CAD model built,  Manufacturing

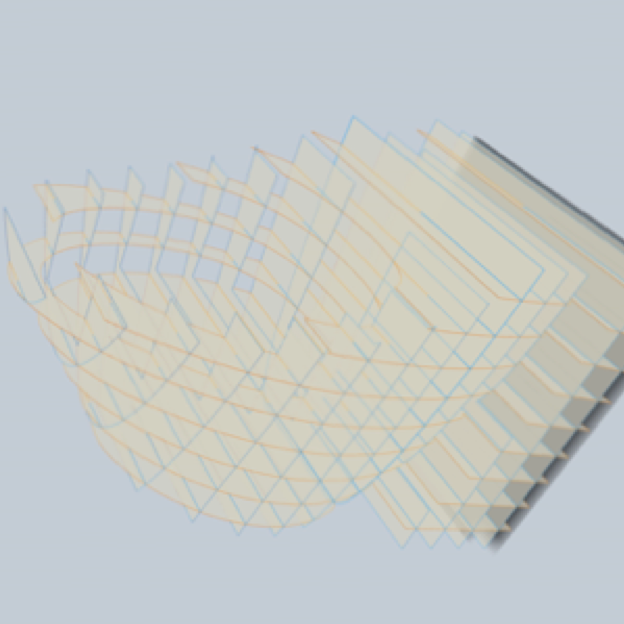

Build a real size toilet

To demonstrate our design better in using scenario, I built a real size toilet by using  Slicer for Fusion 360 and laser cutting on the cardboard
